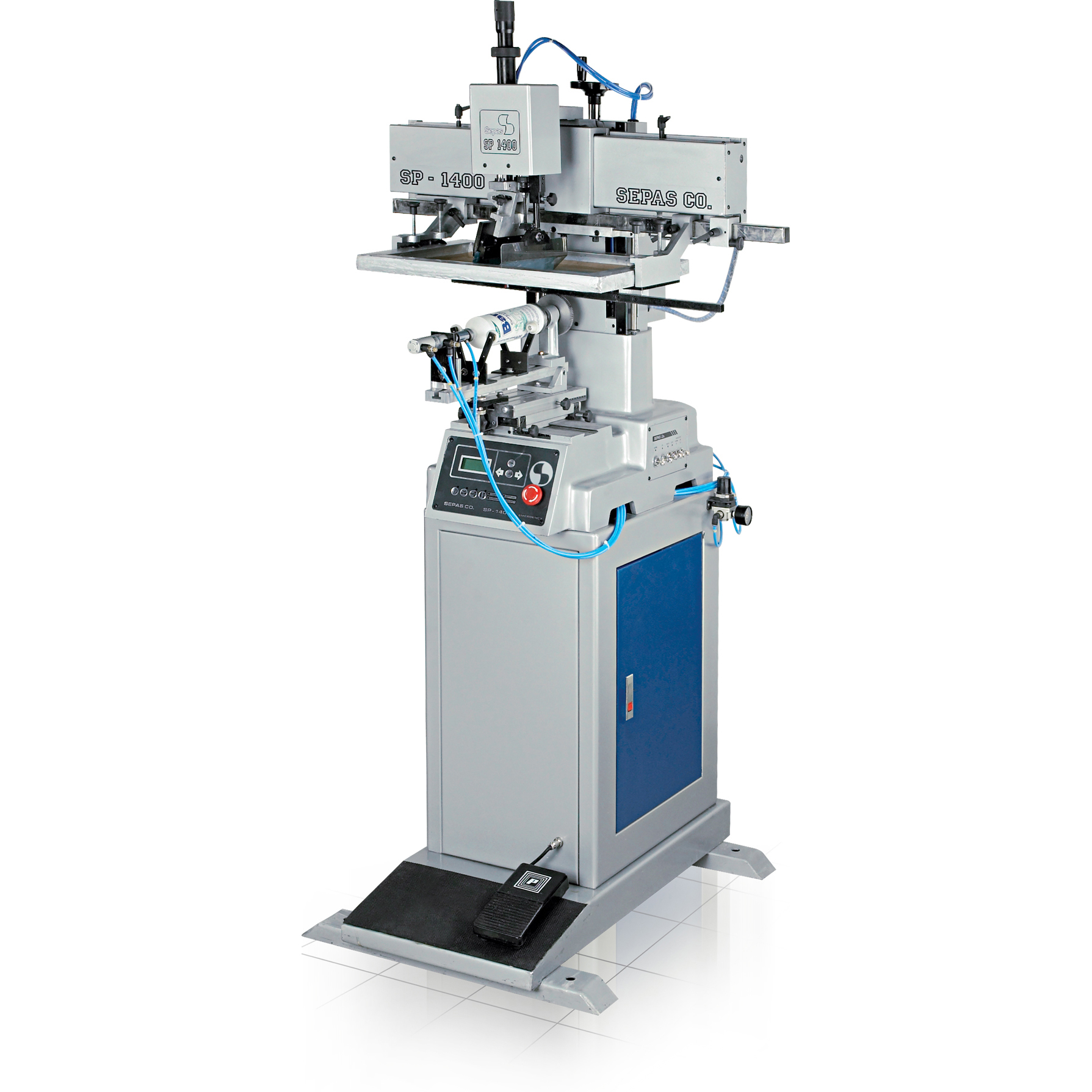

SP-1400 takes the best principles of our existing machines, in combination with a healthy dose of Innovation, to create a whole new class of silk screen printing equipment.
Versatile user- friendly machine for Flat and Round screen printing
Pneumatic power operation
Adjustable timing for printing cycle
Equipments
Vacuum table for Flat printing
Round printing table & Accessories
Features
Versatile user- friendly machine for Flat and Round screen printing
Pneumatic power operation
Adjustable timing for printing cycle
Continuous printing action with pause / resume
Multi language display
Microprocessor, membrane switch control panel
Automatic error finder
Auto air blower for easy colour registration
Emergency interrupt
Single cycle mode
Independently adjustable print down stroke in four- colour mode
Single cycle mode
Simple & accurate squeegee pressure adjustment
Perfect synchronization of screen and product rotation by rack and pinion gear attachment
Quick change over for round or flat printing
Light & Rigid aluminium casting machine frame
| Maximum Frame Size | 300*600mm |
|---|---|
| Maximum Printing Size | 200*400mm |
| Maximum Printing Diameter | 130mm |
| Max.Speed | 1300 Strokes/hr |
| Power | 220V 50/60Hz 50 W |
| Operating Pressure | 6 Bar |
| Air Consumption | 150 lit/min |

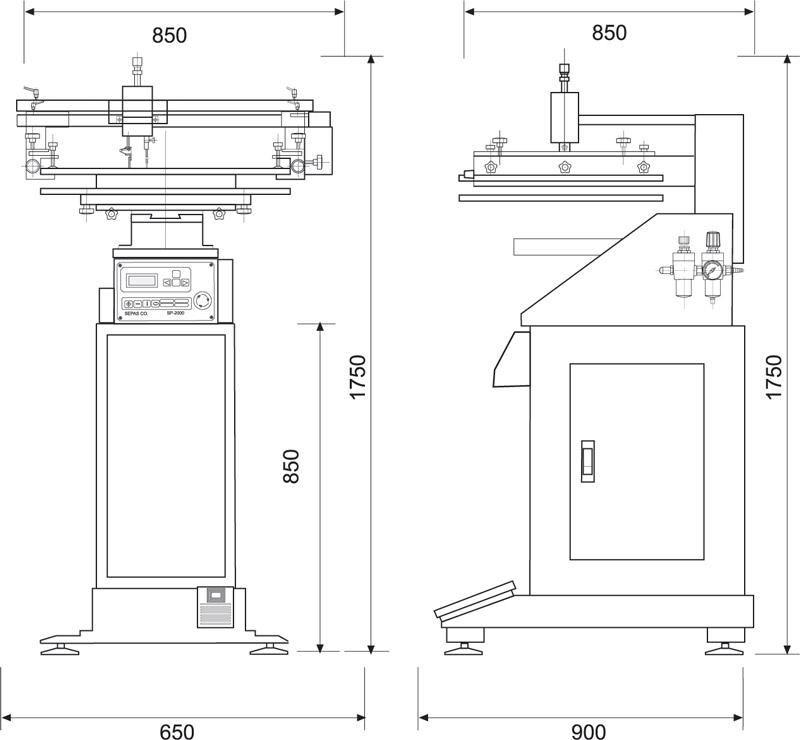

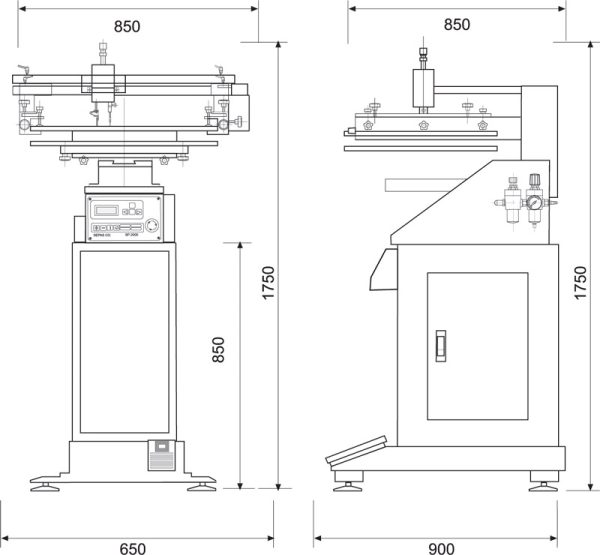

| Size (LxWxH) | 900*850*1750mm |
| Weight | 150Kg |
