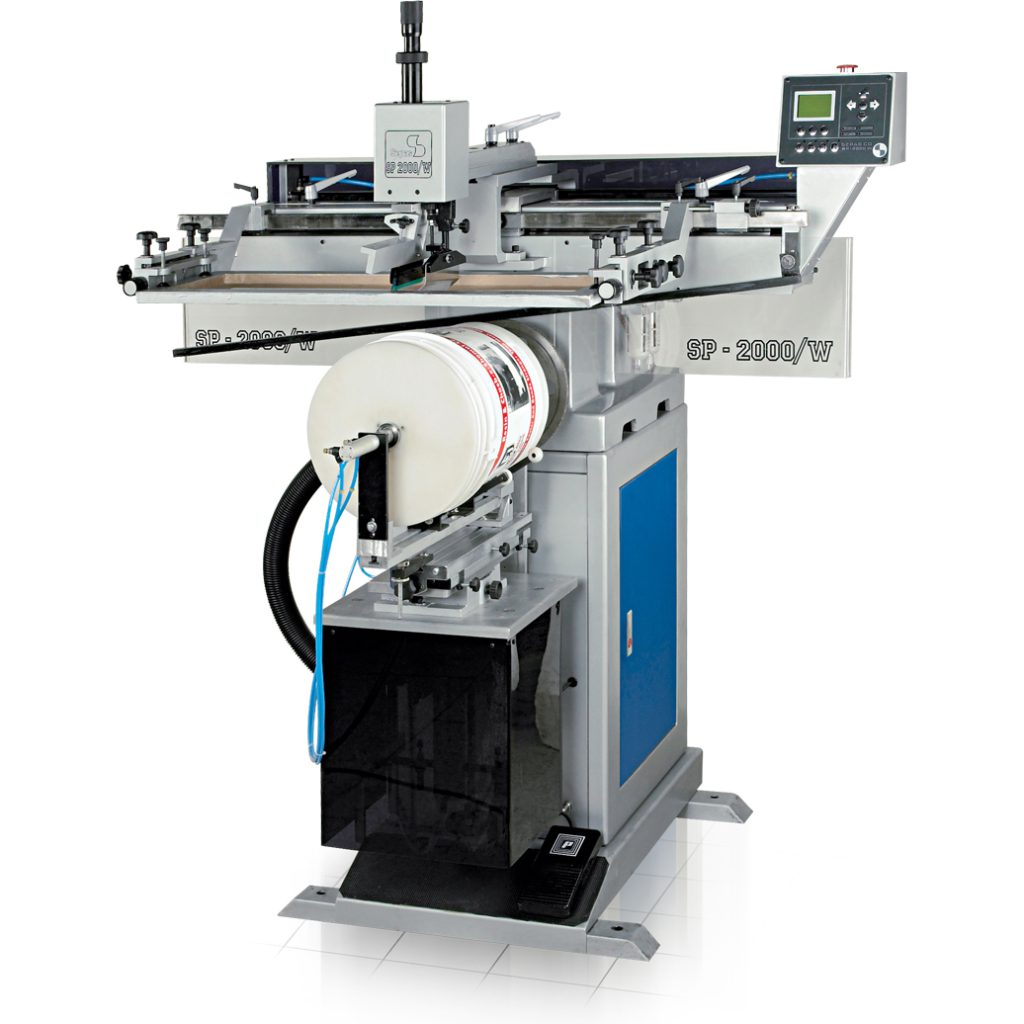

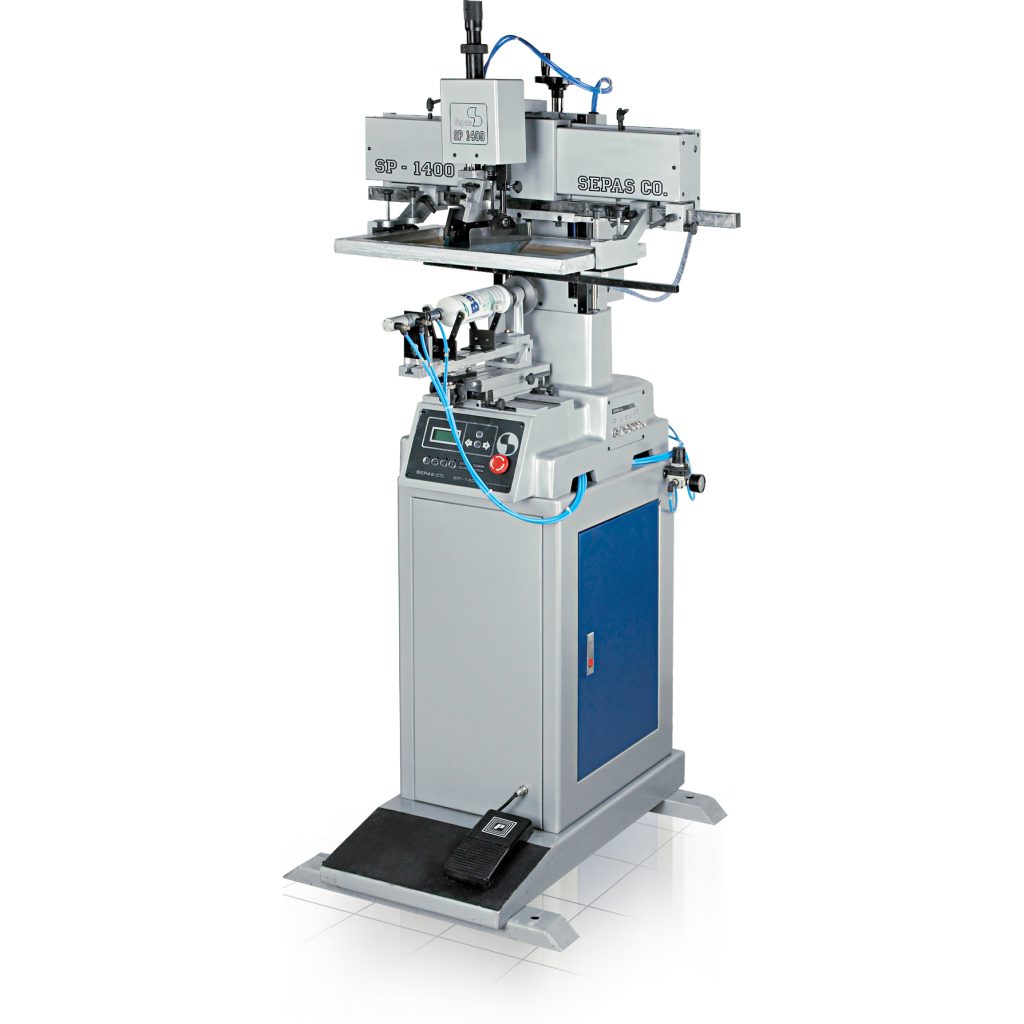

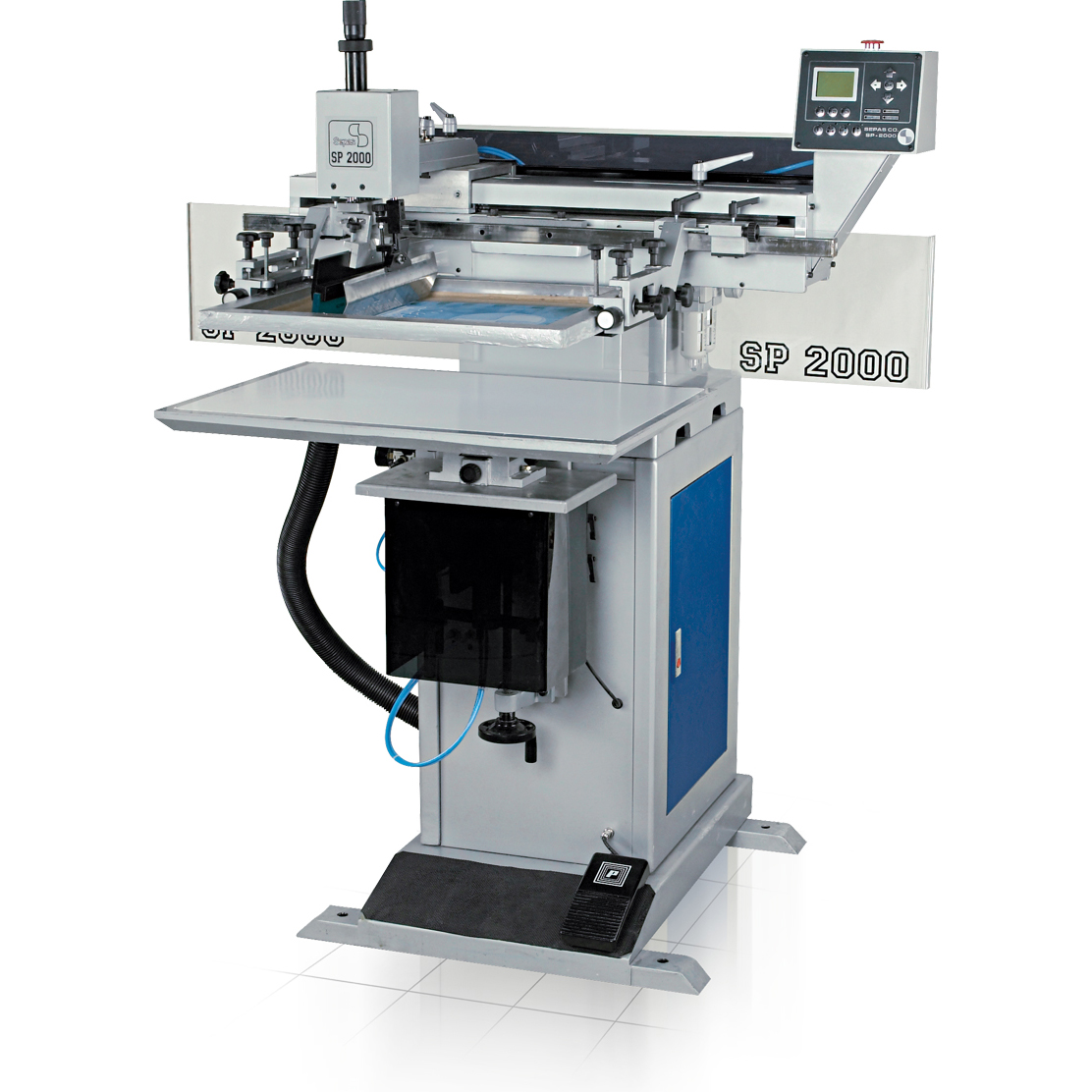

Our standard SP screen printers allow printing one colour either on flat or round surface. SP2000 is the bigger brother of the SP-1400W. However, the SP-2000 offers a larger print area compare to SP-1400.
Simple & accurate squeegee pressure adjustment
Perfect synchronization of screen and product rotation by rack and pinion gear attachments
Quick change over for round or flat printing
Equipments
Vacuum table for Flat printing
Round printing table & Accessories
Features
Versatile user-friendly machine for flat and round screen printing
Pneumatic power operation
Adjustable timing for printing cycle
Continuous printing action with pause / resume
Multi language display
Microprocessor, membrane switch control panel
Automatic error finder
Emergency interrupt
Independent ink and print stroke settings
Single – cycle mode
Simple & accurate squeegee pressure adjustment
Perfect synchronization of screen and product rotation by rack and pinion gear attachments
Quick change over for round or flat printing
Light & Rigid aluminium casting machine frame
| Maximum Frame Size | 600*800mm |
|---|---|
| Maximum Printing Size | 400*600mm |
| Maximum Printing Diameter | 250mm |
| Minimum Printing Diameter | 30mm |
| Max.Speed | 1000 Strokes/hr |
| Power | 220V 50/60Hz 50 W |
| Operating Pressure | 6 Bar |
| Air Consumption | 200 lit/min |

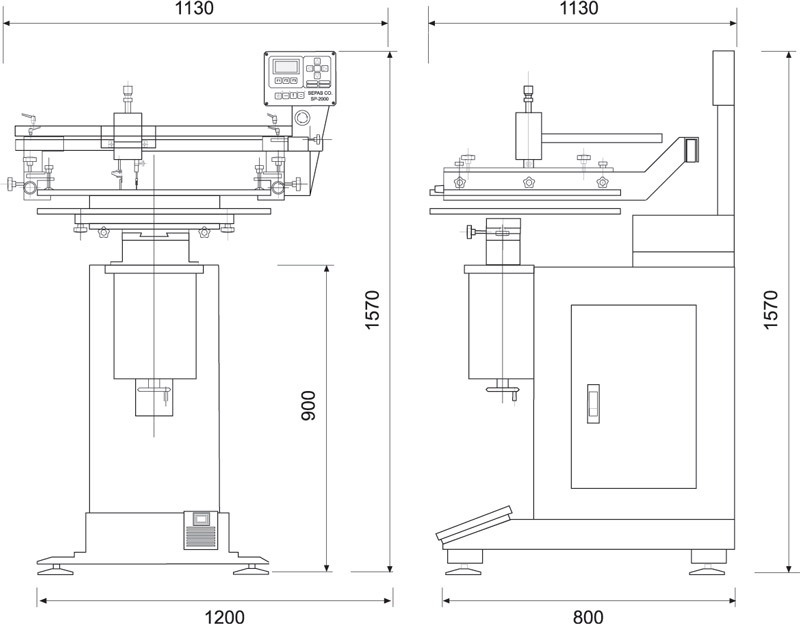

| Size (LxWxH) | 1130*1200*1570mm |
| Weight | 180Kg |
