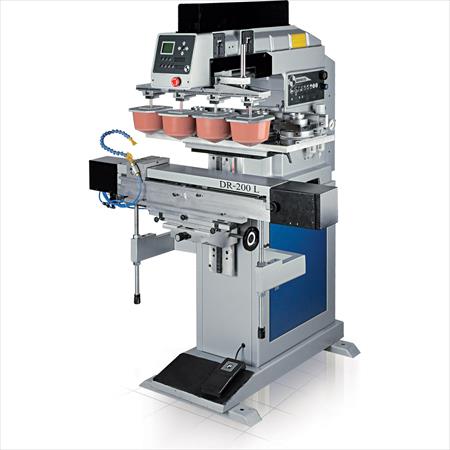

Pad Printing Machines >> Four Colors-Large Size (PP200)

Our famous standard PP series pad printer is available for single colour up to 4 colour applications. Built to last with its rigid aluminum casting frame ,PP-200 can easily be combined with automation accessories for more capabilities. The user can choose frame single, two-colour, multi-colour or transverse inking, linear shuttles, conveyor, and more. These components are 100% user installable, and can be purchased in any combination, at the same time as the PP-200 base unit, or later.

Thumbnail 1
Equipments
Conveyer
UV Dryer
Automatic feeder

Features
4-colour user-friendly automatic pad printer
Flat and Round printing
Pneumatic power operation
Adjustable timing for printing cycle
Continuous printing action with pause / resume
Multi language display
Microprocessor, membrane switch control panel
Automatic error finder
Auto air blower for easy colour registration
Emergency interrupt
Close system (CMIC) and open tray
Ink mixing mode
Single cycle mode
Thin plate , polymer cliché and steel plate
Change ink cup or open tray in seconds
Single pick up / double print option
Double pickup / single print option
Programmable for various requirements
Independently adjustable print down stroke in four- colour mode
Pad down and hold feature (print stroke only)
Light & Rigid aluminium casting machine frame

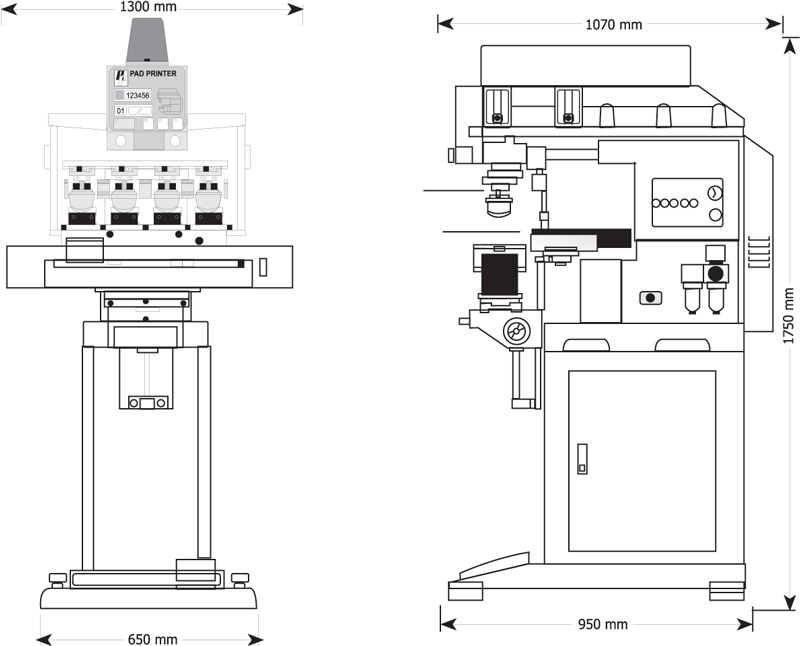

Dimension



 Specifications

Specifications 1 Color 2 Colors 3 Colors 4 Colors
Cliche Dimension (Close System) 300*790mm 300*790mm 300*790mm 300*790mm
Closed Cup Diameter 120mm 120mm 120mm 120mm
Print Area 300*600mm 300*600mm 300*600mm 300*600mm
Maximum Speed 900 Strokes/hr 800 Strokes/hr 700 Strokes/hr 600 Strokes/hr
Elecric Supply 220V - 50/60 Hz 220V - 50/60 Hz 220V - 50/60 Hz 220V - 50/60 Hz
Power Consumption 50W 50W 50W 50W
Operating Pressure 6 Bar 6 Bar 6 Bar 6 Bar
Air Consumption 350 lit/min 350 lit/min 350 lit/min 350 lit/min
Dimensions 1900*1210*1260mm 1900*1210*1260mm 1900*1210*1260mm 1900*1210*1260mm
Weight 200Kg 250Kg 250Kg 250Kg
