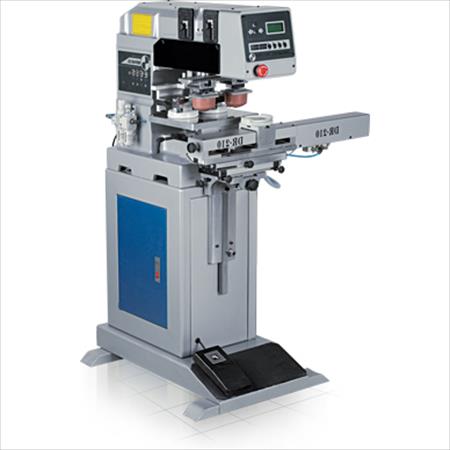

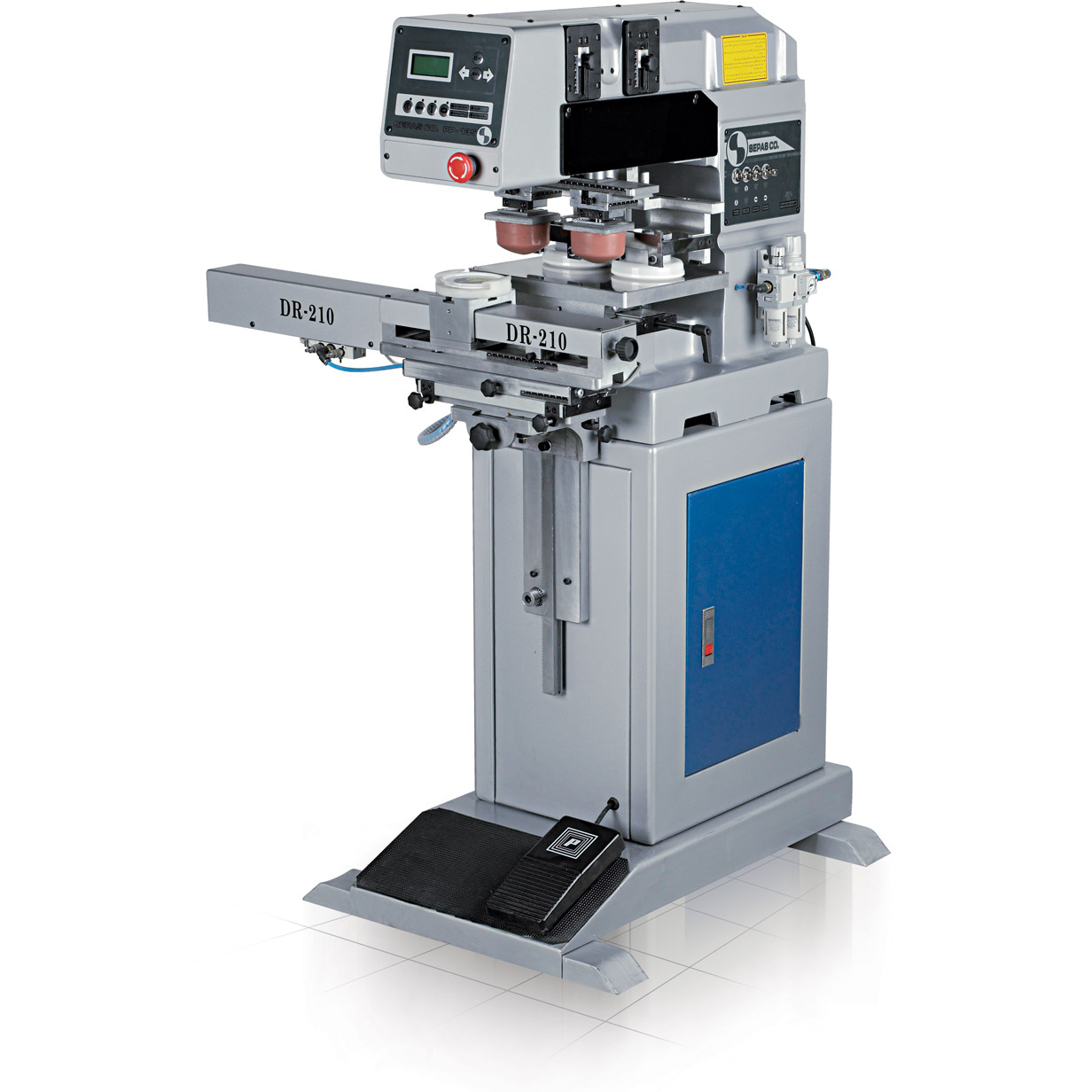

Pad Printing Machines >> Two Colors (PP135)

Our Famous Standard PP Series pad printer is available for single colour up to 4 colour applications. Built to last with its rigid aluminum casting frame PP-135 can easily be combined with automation Accessories for more capabilities. PP-135 pad printing machines represent the culmination of many Years of customer input & continuous innovation suitable for various applications.

Automatic Feeder
Additional open tray 100*300mm
Additional open tray 100*400mm

Single or two colour user – friendly automatic pad printer
Flat and Round printing
Pneumatic power operation
Continuous printing action with pause / resume
Multi language display
Microprocessor, membrane switch control panel
Automatic error finder
Emergency interrupt
Close system (CMIC) and open tray
Thin plate, polymer cliché and steel plate
Ink mixing mode
Single – cycle mode
Independent ink cup and print stroke settings
Change ink or open tray in seconds
Programmable for various requirements
Single pickup / double print option
Double pickup / single print option
Independently adjustable print downstroke in two- colour mode
Pad down and hold feature (print stroke only)
Light & Rigid aluminum casting machine frame


Specifications 1 Color 2 Colors
Cliche Dimension (Open Tray) 100*(100, 200, 300, 400)mm 100*(300, 400)mm
Closed Cup Diameter 80mm 80mm
Print Area (Open System) 40*350mm 70*80mm
Maximum Printing Speed 2200 Strokes/hr 1800 Strokes/hr
Electric Supply 220V - 50/60 Hz 220V - 50/60 Hz
Power Consumption 50W 50W
Operating Pressure 6 Bar 6 Bar
Air Consumption 70 lit/min 90 lit/min

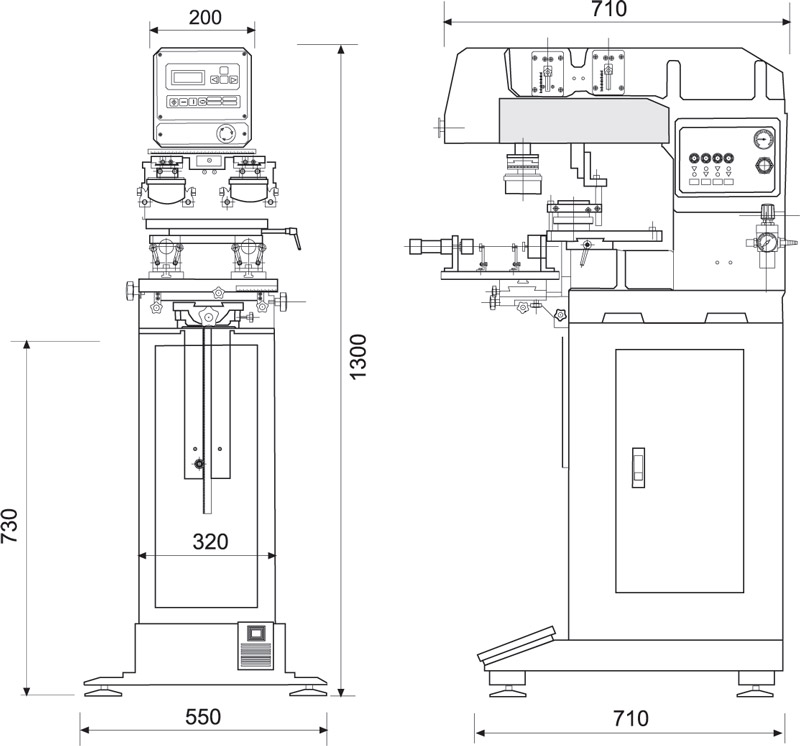

Dimensions 710*550*1300mm 710*550*1300mm
Weight 100Kg 120Kg
